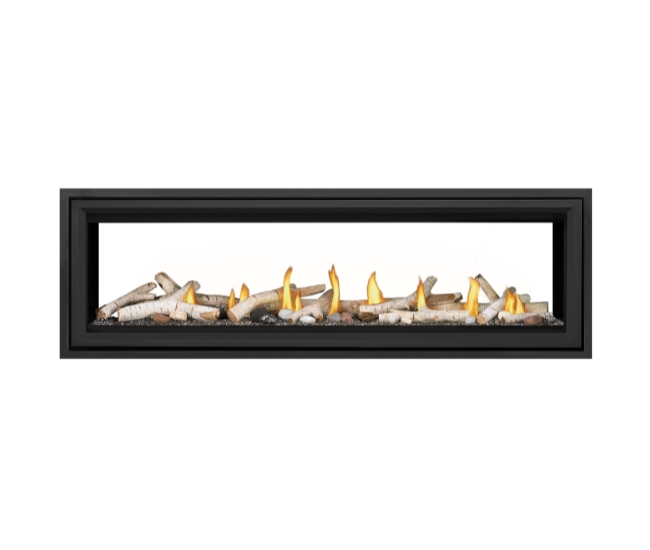

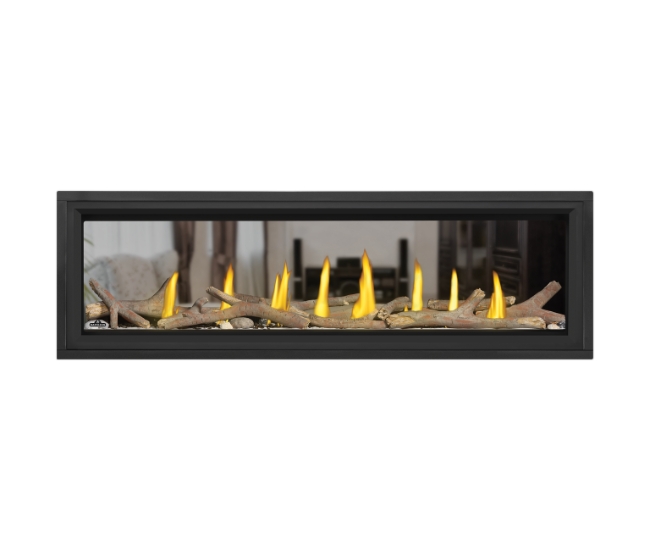

Napoleon Vector 62-inch See-Thru Direct Vent Natural Gas Fireplace

The Napoleon Vector 62-inch See-Thru Direct Vent Natural Gas Fireplace creates a wide, contemporary flame presentation that can be enjoyed from two adjoining spaces. Its see-through design makes it ideal for installations where the fireplace becomes a visual connection between rooms, while the linear firebox provides a clean architectural appearance. The natural gas burner operates from 29,000 to 42,000 BTUs with electronic ignition and adjustable flame output.

A tube-style burner with flame and heat adjustment stretches the fire across the length of the firebox. Included MIRRO-FLAME porcelain reflective radiant panels complement the contemporary interior, while heat-radiating ceramic glass provides a clear view of the fire from both sides. Black premium safety barriers are included to help reduce the risk of accidental contact with the hot viewing glass.

Convenient fireplace operation is provided through Napoleon's ProFlame II control system, eFIRE Bluetooth controller, and included remote control. The remote provides six flame-height levels, while the eFIRE application allows compatible fireplace functions to be controlled from a mobile device, including on/off operation, flame height, lighting, and scheduling features.

As a true see-through fireplace, there are firebox glass doors on both sides. One side is designated as the access side and can be identified by the pilot location. The opposite side uses a fixed glass door that is designed to remain sealed and should only be removed by a qualified installer. This configuration maintains the sealed direct vent system while providing a clear view through the fireplace.

The fireplace uses a top 5-inch exhaust / 8-inch air intake direct vent connection and is designed for indoor built-in installation. Overall appliance dimensions are approximately 77.3125 inches wide × 41.1875 inches high × 16.1875 inches deep. Standard see-through framing calls for approximately 77.8125 inches of framing width × 16.1875 inches of framing depth, with a minimum enclosure height of 91 inches. The appliance does not require elevation above the floor, although actual framing and enclosure requirements depend on the venting, finishing, and heat-management configuration.

Disclaimer: A compatible decorative media configuration is required to complete the fireplace. Additional venting, conversion, finishing, heat-management, or installation components may be required depending on the application. Technical information, dimensions, framing requirements, clearances, venting requirements, accessory compatibility, and specifications are subject to change. Always refer to the current Napoleon owner's manual and installation manual for complete requirements before installation, operation, or service.

**LV62 & LV74 Requires 4 week lead time**
