Napoleon Luxuria See-Thru 62-inch Direct Vent Natural Gas Fireplace

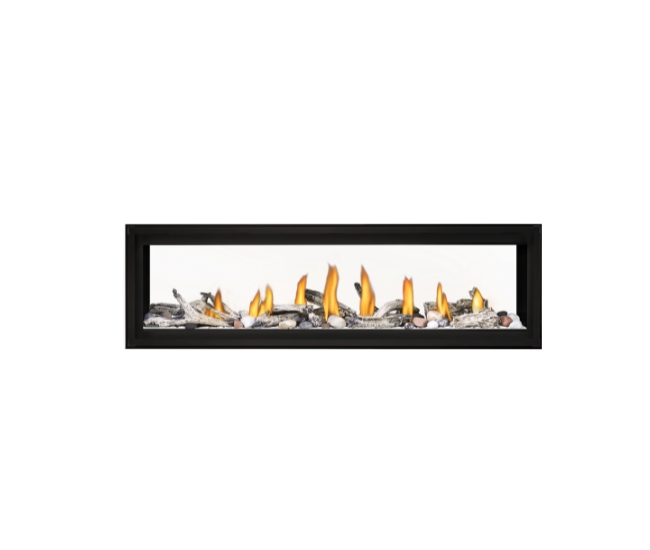

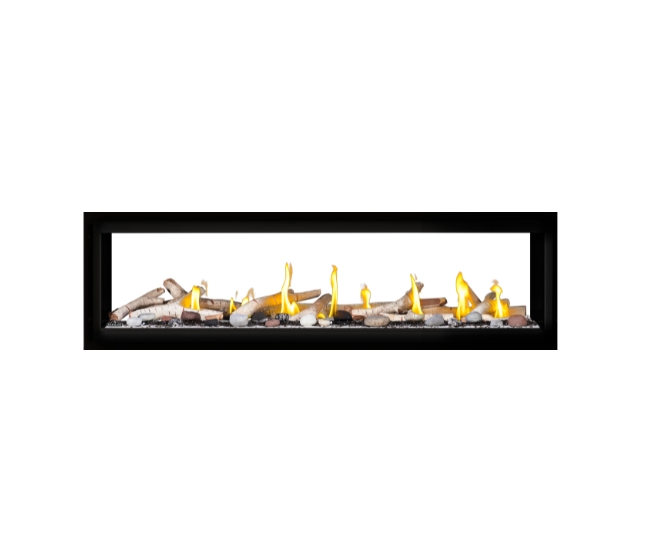

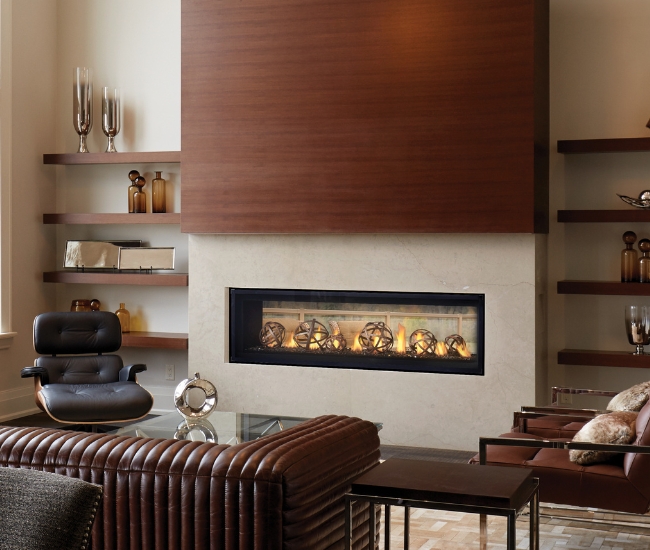

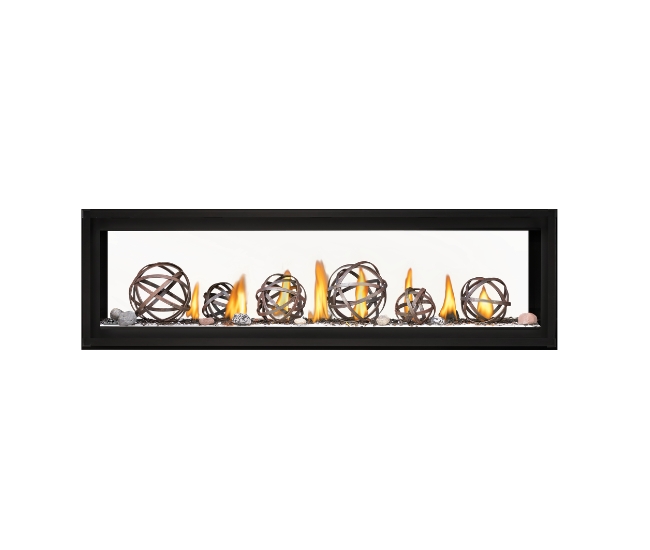

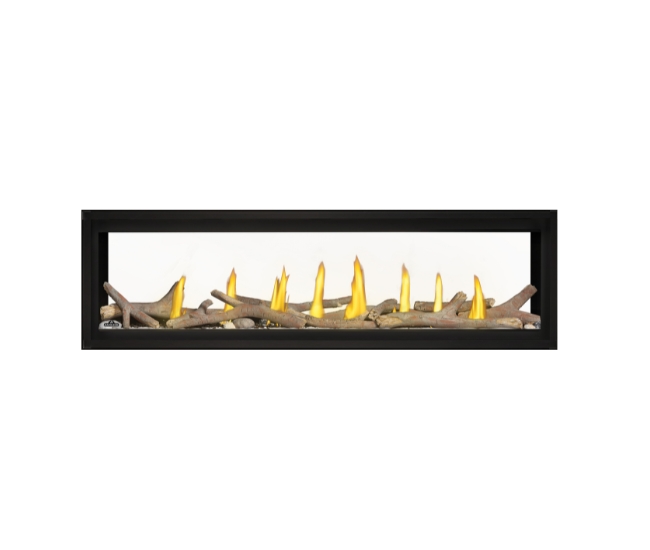

The Napoleon Luxuria See-Thru 62-Inch Direct Vent Natural Gas Fireplace delivers an expansive two-sided flame presentation designed to connect adjoining rooms or create a dramatic architectural divider in an open living space. This built-in see-thru direct vent fireplace combines Napoleon's Divinity flame pattern with a multi-colored LED ember bed and included MIRRO-FLAME porcelain reflective radiant panels for a modern fire presentation that can be enjoyed from both sides.

The natural gas burner operates from approximately 32,000 to 44,000 BTU per hour and provides adjustable flame output. Electronic ignition is paired with Napoleon's ProFlame II control system and eFIRE Controller, providing operation through the included handheld remote as well as compatible Bluetooth mobile control. The remote provides six flame-height levels, while the multi-colored LED lighting can begin in white, cycle through available colors, or be stopped on a selected color.

The fireplace also features Napoleon's Pilot-on-Demand ignition system, which provides both intermittent pilot ignition and continuous pilot operation with an integrated seven-day timer. A battery back-up control system can maintain burner and flame-height operation during many power outages, although lighting functions are unavailable while operating on battery backup. If the fireplace is installed with a gas power vent, electrical power is required for operation.

A defining feature of the Luxuria Series is the included Dynamic Heat Control system. Dynamic Heat Control manages heat produced around the fireplace opening by moving it away from the appliance enclosure and allowing it to circulate more effectively into the living space. When installed according to Napoleon's requirements, the system significantly reduces temperatures above the fireplace opening, provides greater flexibility in the selection of finishing materials, and can accommodate installations with a television, sound bar, or artwork above the fireplace.

The see-thru configuration provides viewing from two rooms or spaces while maintaining a sealed direct vent combustion system. Both sides incorporate firebox glass, with one designated as the access side and the opposite side serving as the fixed side. The access side is identified by the pilot location. Luxuria models also use Napoleon's Glass Guard Barrier System, and see-thru installations use a glass guard assembly on each viewing side to help reduce the risk of contact with the hot viewing glass.

The fireplace uses a top 5-inch exhaust and 8-inch air-intake direct vent system. The 62-inch see-thru appliance measures approximately 81 5/16 inches wide by 41 3/16 inches high, with a 16 3/16-inch appliance body depth and 1/2-inch finishing flanges on both viewing sides. The appliance body width is approximately 77 5/16 inches, while the finishing flange opening measures approximately 66 1/8 inches wide. Minimum see-thru rough framing is approximately 77 13/16 inches wide by 16 3/16 inches deep, with a minimum enclosure height of approximately 91 inches.

Disclaimer: Technical specifications, dimensions, framing requirements, clearances, venting configurations, gas pressures, Dynamic Heat Control requirements, power vent requirements, media requirements, and accessory compatibility can vary by installation and may be revised by the manufacturer. Installation and service must be performed by a qualified professional. Always refer to the current Napoleon owner's manual and installation manual for complete and authoritative installation, framing, venting, gas, electrical, finishing, operating, and safety information before ordering or installing this fireplace.
