Napoleon Tall Linear Vector with Luminous Logs See-Thru 74-inch Direct Vent Natural Gas Fireplace

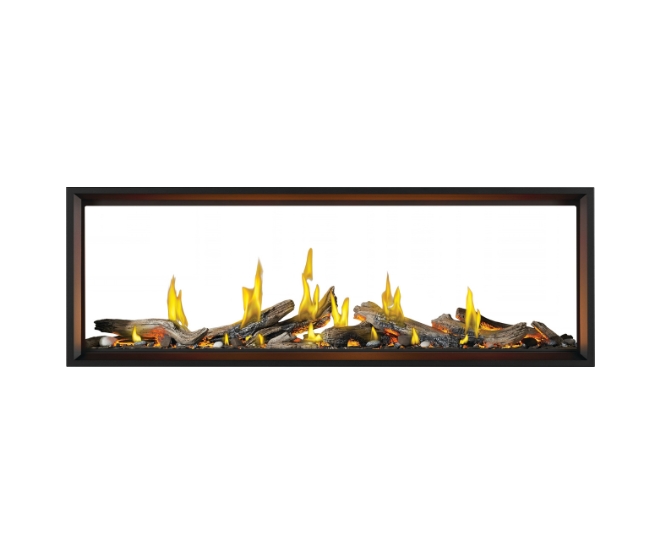

The Napoleon Tall Linear Vector with Luminous Logs 74-inch See-Through Direct Vent Natural Gas Fireplace creates an expansive two-sided fire presentation designed to become an architectural focal point between adjoining spaces. Its see-through configuration provides a clear view of the flames from both sides, while the tall linear proportions combine contemporary styling with the character of a realistic log fire.

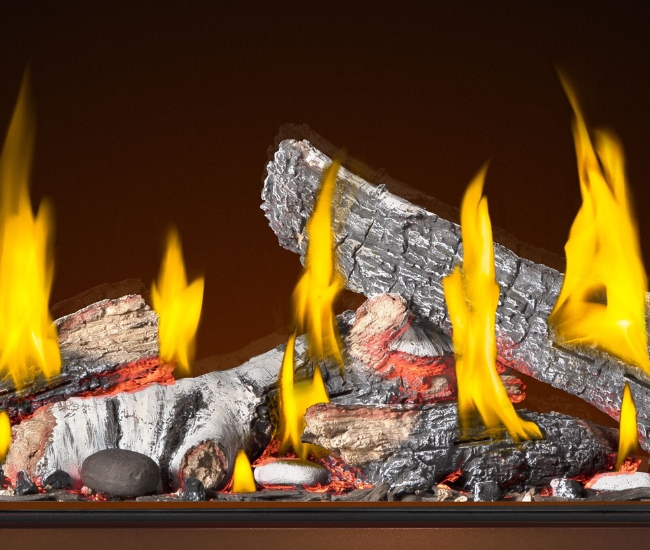

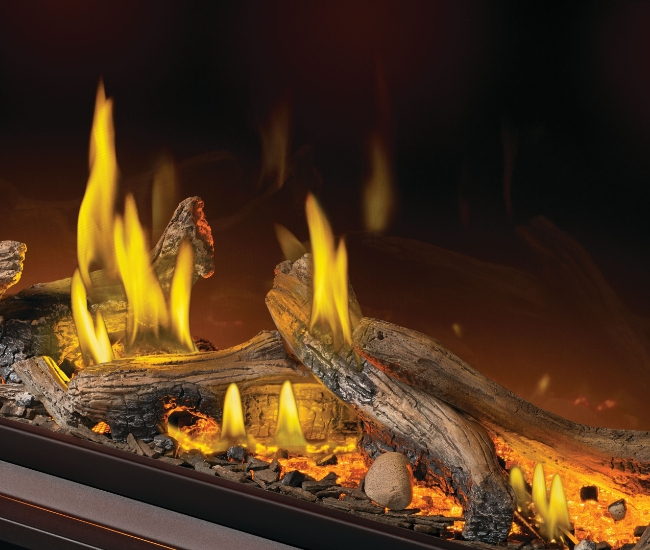

At the center of the fireplace is Napoleon's Luminous Logs system with a modulating electric ember bed. The illuminated ember bed adds a deep glowing effect beneath and around the logs, enhancing the appearance of burning embers throughout the firebox. One compatible Luminous Log Burner Kit is required to complete the fireplace and is selected separately. Available options include Birch, Driftwood, and Oak, with each kit including the corresponding Luminous Logs along with rocks, glowing embers, charcoal, shale, glass, and vermiculite.

The firebox is enhanced by MIRRO-FLAME porcelain reflective radiant panels, helping reflect the flames and glowing media for greater visual depth. Top accent lighting adds illumination to the fireplace display, while heat-radiating ceramic glass provides the clear two-sided viewing area. A black premium safety barrier is also included as part of the fireplace system.

The natural gas configuration operates from 26,000 to 48,000 BTU/hr at elevations from 0 to 4,500 feet. The fireplace uses a top 5-inch exhaust and 8-inch air intake direct vent system. Overall appliance dimensions are approximately 89 5/16 inches wide, 49 7/16 inches high, and 16 3/16 inches deep. The finishing flange measures approximately 76 9/16 inches wide by 26 13/16 inches high.

For installation planning, the see-through configuration requires a minimum framing width of approximately 89 13/16 inches and a minimum framing depth of approximately 16 3/16 inches. The fireplace requires a minimum enclosure or ceiling height of approximately 91 inches, although some venting configurations may require a taller enclosure.

Disclaimer: Technical specifications, dimensions, BTU ratings, framing requirements, venting requirements, gas pressures, clearances, electrical requirements, accessory compatibility, heat-management requirements, and installation information are subject to change without notice. Refer to the current Napoleon owner's manual and installation manual for the most accurate product, safety, installation, venting, clearance, and operating information.

**Requires 4 week lead time**
