Napoleon Ascent Multi-View 3-Sided Direct Vent Natural Gas Fireplace with Logs

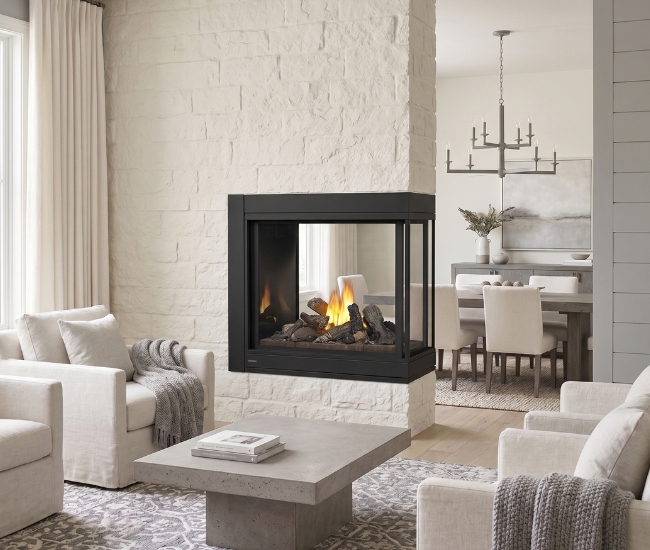

The Napoleon Ascent Multi-View 3-Sided Direct Vent Natural Gas Fireplace creates a distinctive architectural focal point with a three-sided peninsula design that opens the fire to multiple viewing angles. Designed for built-in installations, this configuration works especially well as a room divider or as the centerpiece of an open-concept space where the fire can be enjoyed from several areas.

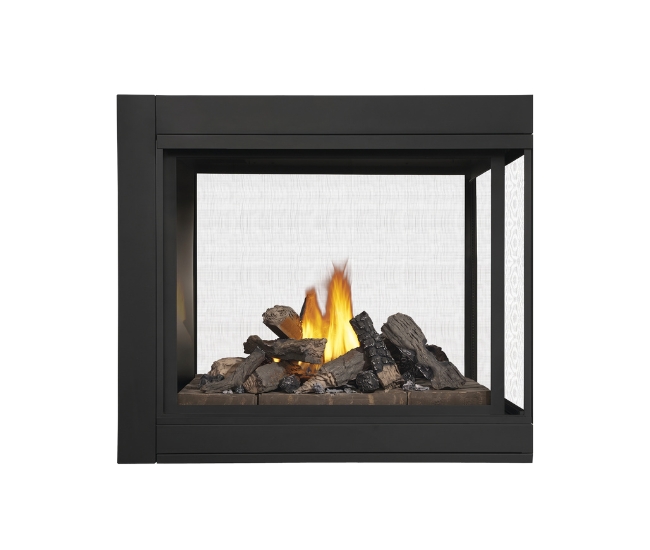

This configuration features a traditional PHAZER™ log presentation with glowing embers, charcoal embers, and charcoal accents that create the appearance of a naturally burning wood fire. The multi-view firebox allows the log arrangement and flame pattern to remain visible from the large main viewing area as well as the end of the fireplace, combining a traditional fire presentation with a contemporary peninsula installation.

Operating on natural gas, the Ascent Multi-View has a maximum input rating of 30,000 BTU/hr and a maximum output rating of 23,000 BTU/hr. An electronic ignition system automatically lights the pilot, while Napoleon's battery backup control system allows the appliance to operate during a power outage when the required batteries are installed.

The direct vent system uses a 5-inch exhaust and 8-inch air intake configuration with a 45-degree top and rear vent connection. This system supports approved horizontal or vertical venting configurations while separating the combustion system from the living space. A firestop is included, and the appliance can also be adapted to approved 4-inch / 7-inch venting applications when installed with the appropriate Napoleon components.

Backed by Napoleon's President's Limited Lifetime Warranty, the Ascent Multi-View combines a traditional log fire presentation with the visual impact of a three-sided direct vent fireplace, making it well suited for installations where the fireplace is intended to become a defining architectural feature.

Disclaimer: Technical specifications, dimensions, framing requirements, clearances, venting requirements, accessory compatibility, gas pressures, and other product information are subject to change. Always refer to the current Napoleon owner's manual and installation manual for complete and accurate installation, operation, venting, clearance, and safety requirements.
