Napoleon Ascent Multi-View See-Thru Direct Vent Natural Gas Fireplace with Logs

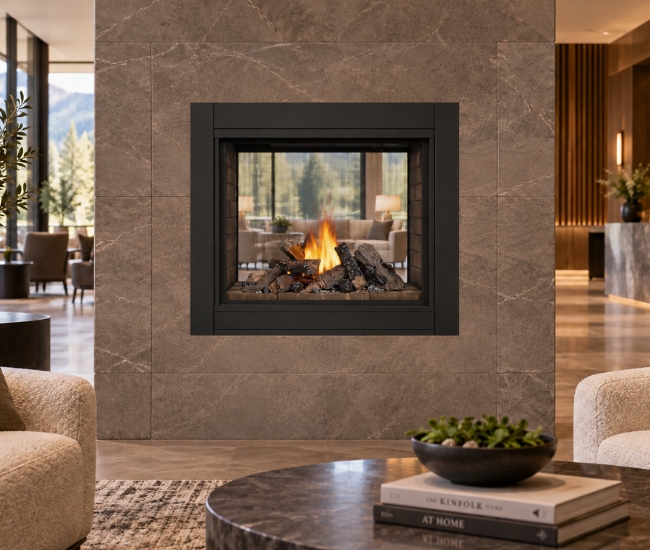

The Napoleon Ascent Multi-View See-Thru Direct Vent Natural Gas Fireplace with Logs creates a striking connection between adjoining spaces with a two-sided see-through design that allows the fire to be enjoyed from either side of the installation. Designed for built-in applications, this configuration is an excellent choice for dividing walls, open-concept layouts, and spaces where a fireplace can serve as an architectural centerpiece for more than one room.

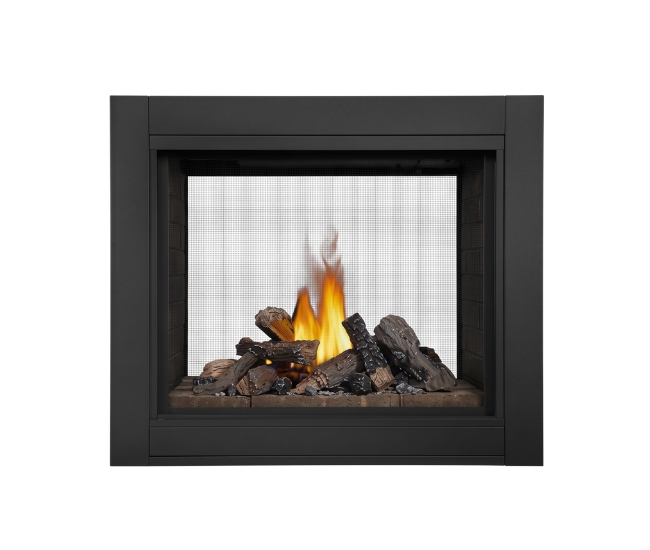

This model features Napoleon's traditional PHAZER™ log presentation, creating the character of a wood-burning fire within the convenience of a natural gas fireplace. The log burner arrangement is complemented by glowing embers and charcoal accents, providing added depth and detail to the firebox while the see-through configuration keeps the flame presentation visible from both sides.

Operating on natural gas, the Ascent Multi-View provides a maximum input of 30,000 BTU/hr and a maximum output of 23,000 BTU/hr. An electronic ignition system automatically lights the pilot, while the integrated battery backup control system allows the fireplace to continue operating during a power outage when the required batteries are installed.

The direct vent system uses a 5-inch exhaust and 8-inch air intake configuration with a 45-degree top and rear vent connection. Approved horizontal and vertical venting configurations provide flexibility when planning the installation, while the sealed direct vent design keeps the combustion air and exhaust system separated from the living space.

Backed by Napoleon's President's Limited Lifetime Warranty, the Ascent Multi-View See-Thru combines a traditional log fire presentation with the visual impact of a two-sided direct vent fireplace, making it well suited for installations where the fire is intended to be enjoyed from multiple living areas.

Disclaimer: Technical specifications, dimensions, framing requirements, clearances, venting requirements, accessory compatibility, gas pressures, and other product information are subject to change. Always refer to the current Napoleon owner's manual and installation manual for complete and accurate installation, operation, venting, clearance, and safety requirements.
