Napoleon Built-In 700 Series Dual Range Top Burner with Stainless Steel Cover

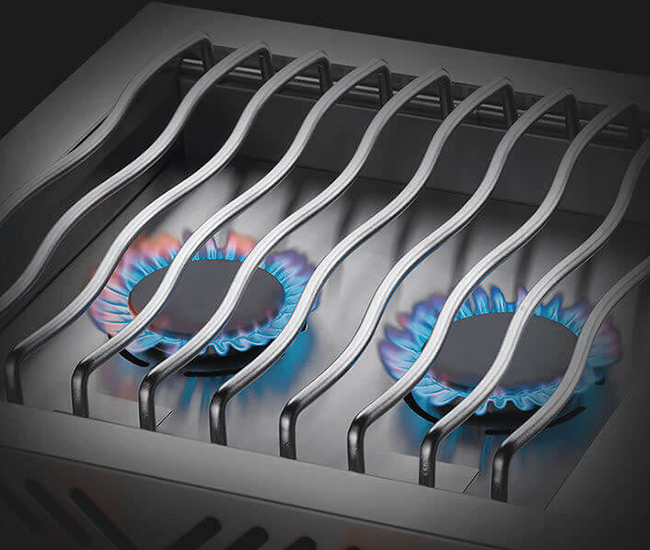

The Napoleon Built-In 700 Series 18-inch Dual Range Top Burner gives an outdoor kitchen a dedicated cooking area for sauces, side dishes, large pots and other foods that do not need to take up space on the main grill. With two gas burners producing up to 30,000 BTUs, this built-in burner provides the versatility of an outdoor stovetop while keeping everything within easy reach.

The dual range top burner is especially useful when preparing complete meals outdoors. Use one burner for a saucepan while the other handles vegetables, soup, gravy or another side dish. The generous 17.5 x 18-inch cooking area provides approximately 310 square inches of cooking space, giving you room for cookware without crowding the main grill.

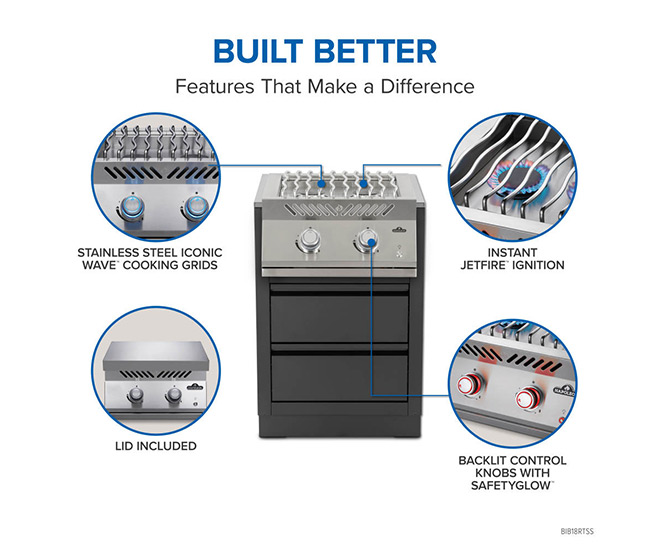

Built from premium stainless steel, this 18-inch drop-in burner is designed to coordinate with a custom outdoor kitchen and other Built-In 700 Series components. The seamless trim creates a clean installation around the countertop opening, while the included stainless steel cover protects the cooking area and provides a finished appearance when the burner is not being used. Never close the cover while the burner is operating or still hot.

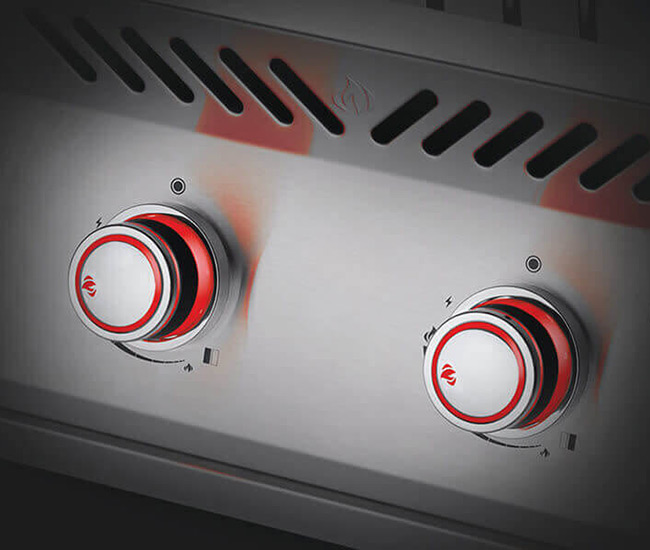

Starting the burners is quick with the JETFIRE ignition system. The battery-free ignition system provides dependable startup without requiring a separate ignition battery. Large ergonomic controls make heat adjustments easy, while the backlit control knobs improve visibility at night. The knobs illuminate blue and change to red when the burners are operating, providing a quick visual indication that heat is on.

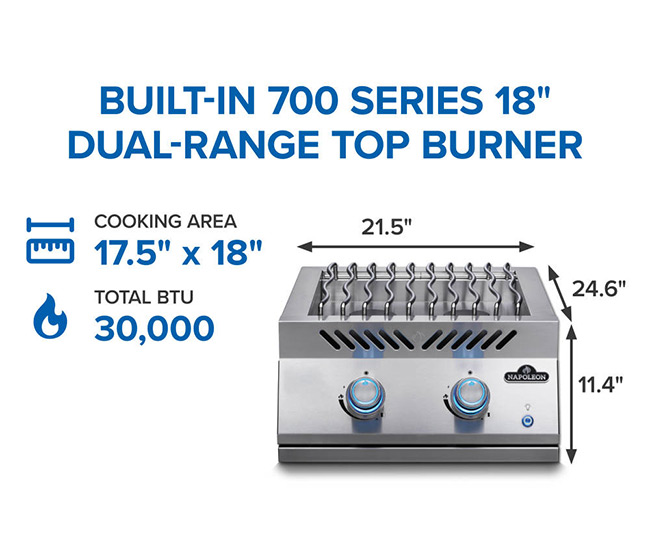

The complete burner measures approximately 21.50 inches wide x 24.60 inches deep x 11.40 inches high. For a standard installation without a zero-clearance liner, the BIB18 opening requires a width of 18 to 20 inches, a depth of 19.4 to 19.75 inches, and a height of 10.25 inches. The installation drawing also specifies an X dimension of 21.50 inches. Cabinet and countertop dimensions should always be confirmed before fabrication.

Installation Clearances: Maintain at least 17 inches of clearance to combustibles at the rear and 9 inches at the sides. A minimum distance of 17 inches between additional appliances is also specified in the owner's manual. Proper clearances, ventilation and gas connections are important when planning the outdoor kitchen.

Important Power Requirement: When this Built-In 700 Series burner is installed without a Built-In 700 Series grill head, Power Supply Kit N370-1091-SER is required to supply power to the illuminated control knobs. The power supply kit is sold separately.

Technical Information Disclaimer: Product specifications, dimensions, cutout requirements, clearances, gas requirements and installation information should be verified before purchase and installation. Always refer to the current owner's manual and assembly or installation guide for the exact model being installed. Gas connections and installation should be completed by a qualified professional in accordance with applicable local codes.
