Napoleon Built-In 700 Series Inline Dual Range Top Burner with Stainless Steel Cover

The Napoleon Built-In 700 Series 12-inch Inline Dual Range Top Burner adds a compact two-burner cooking station to a custom outdoor kitchen, giving you dedicated space for sauces, side dishes, large pots and other stovetop-style cooking while the main grill handles the rest of the meal. The two burners deliver a combined 30,000 BTUs of cooking power.

The inline dual-burner design places two range burners in a narrow 12-inch footprint, making efficient use of valuable outdoor kitchen counter space. Use the burners to boil water, simmer sauces, prepare vegetables or cook side dishes without taking up room on the main grill. With two independently controlled burners, you can prepare multiple items at different heat levels at the same time.

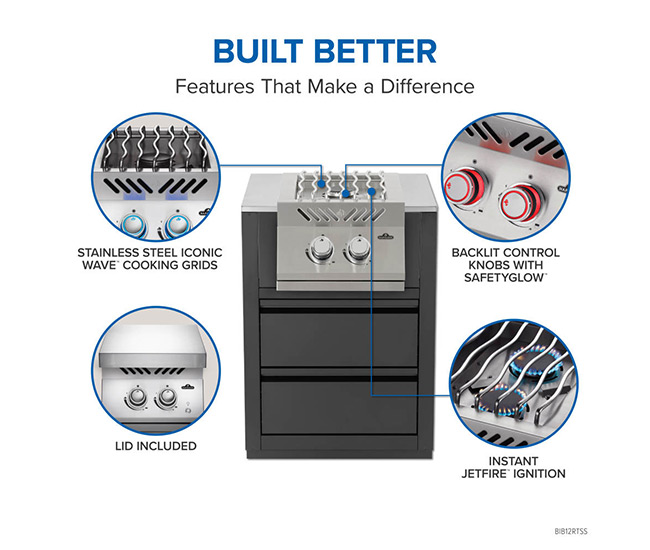

The cooking surface features durable shot-blasted stainless steel WAVE cooking grids designed to provide a stable surface for pots and pans. The live product specifications list a 11.75 x 18-inch main cooking area with approximately 202 square inches of total cooking space, providing useful capacity for cookware while maintaining the burner’s compact built-in footprint.

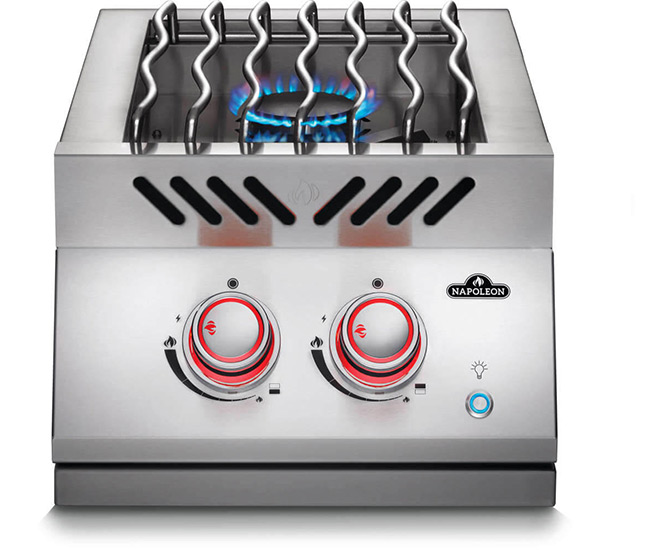

Lighting is quick and convenient with the JETFIRE ignition system. The battery-free ignition system provides dependable startup without requiring replacement ignition batteries. Large ergonomic backlit SafetyGlow control knobs improve visibility during evening cooking and change from blue to red when the burners are operating, providing an easy visual reminder that the heat is on.

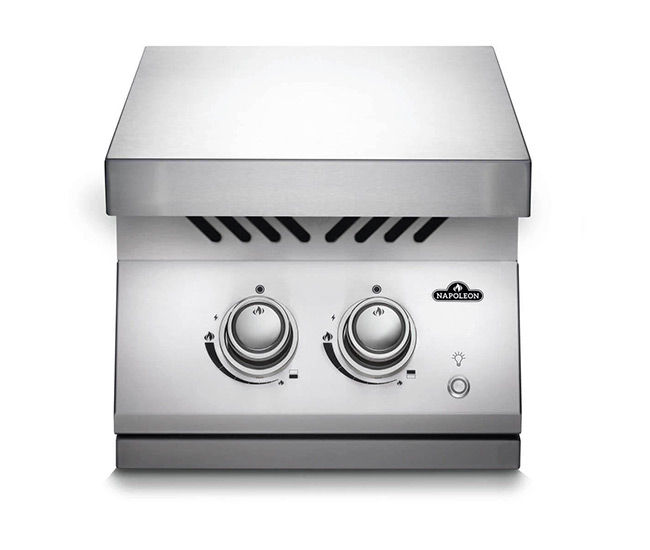

Built from premium stainless steel, this drop-in range burner is designed for long-term outdoor use and a clean, integrated appearance. Seamless perimeter trim helps create a finished transition between the burner and countertop, while the included stainless steel protective cover keeps the cooking area covered and maintains a streamlined appearance when the burners are cool and not in use. Never close the cover while the burners are operating or still hot.

The complete unit measures approximately 15.50 inches wide x 24.60 inches deep x 11.40 inches high. For a standard installation without a zero-clearance liner, the BIB12 opening requires a width of 12 to 14 inches, an X dimension of 15.50 inches, a depth of 19.4 to 19.75 inches, and a height of 10.25 inches. These dimensions should be confirmed before the outdoor kitchen countertop or cabinet is fabricated.

Installation Clearances: Maintain at least 17 inches of clearance to combustible materials at the rear and 9 inches at the sides. The owner's manual also specifies a minimum distance of 17 inches between additional appliances. Proper ventilation and gas-line routing must be maintained throughout the outdoor kitchen installation.

Important Power Requirement: When this Built-In 700 Series burner is installed without being connected to a Built-In 700 Series grill, Power Supply Kit N370-1091-SER is required to supply power to the illuminated control knobs. If the burner is installed more than 3 feet from a Built-In 700 Series grill, N750-0087 3-foot Extension Wire is required for the control-knob power connection.

Technical Information Disclaimer: Product specifications, dimensions, cutout requirements, clearances, gas requirements and installation information should be verified before purchase and installation. Always refer to the current owner's manual and assembly or installation guide for the exact model being installed. Gas connections and installation should be completed by a qualified professional in accordance with applicable local codes.
