Napoleon Built-In 700 Series Single Range Top Burner with Stainless Steel Cover

The Napoleon Built-In 700 Series 10-inch Single Range Top Burner adds a convenient stovetop-style cooking station to a custom outdoor kitchen, giving you extra room to prepare sauces, soups, vegetables and side dishes while the main grill handles the rest of the meal. This compact built-in burner delivers 10,000 BTUs of cooking power from a single range-style gas burner.

The single range top burner works much like a burner on an indoor cooktop, making it a practical addition when you want to keep the entire meal outdoors. Use it to simmer barbecue sauce, warm beans, prepare gravy, boil water or cook side dishes without giving up space on the main grill. The owner's manual recommends a 10-inch diameter pot or pan for the flame side burner and notes that performance can be affected by strong wind, so proper outdoor kitchen placement is important.

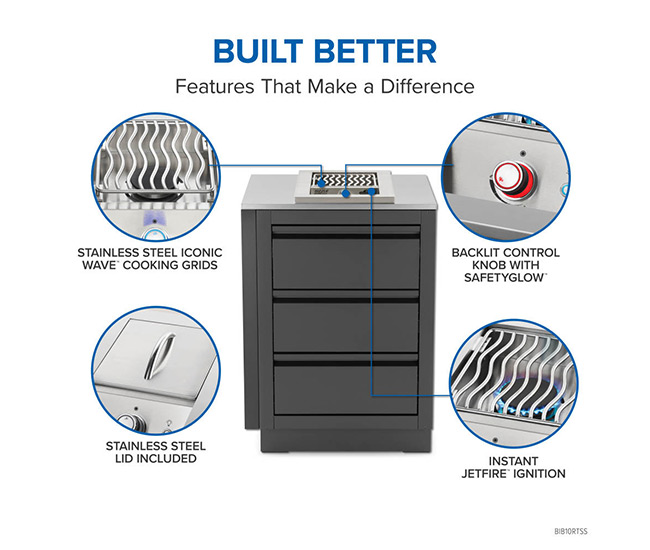

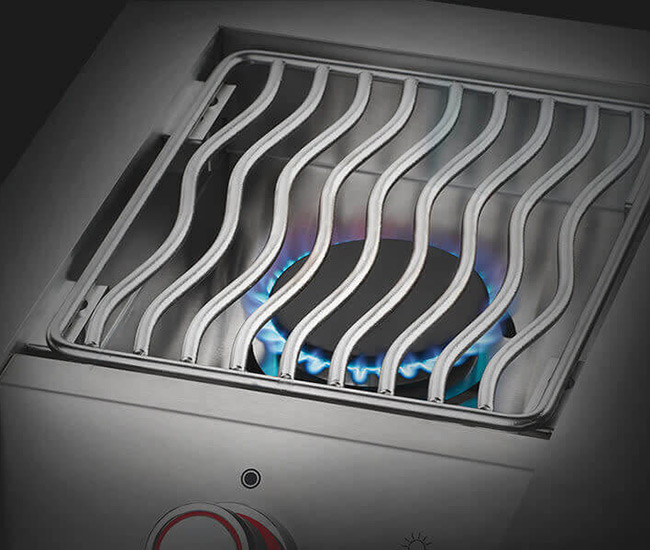

A durable 7.5 mm stainless steel WAVE cooking grid provides a sturdy surface for cookware while adding the distinctive wave-shaped design found throughout the Built-In 700 Series. The 9 x 10.5-inch cooking area provides approximately 93 square inches of cooking space, giving this compact burner useful capacity without taking up excessive countertop space.

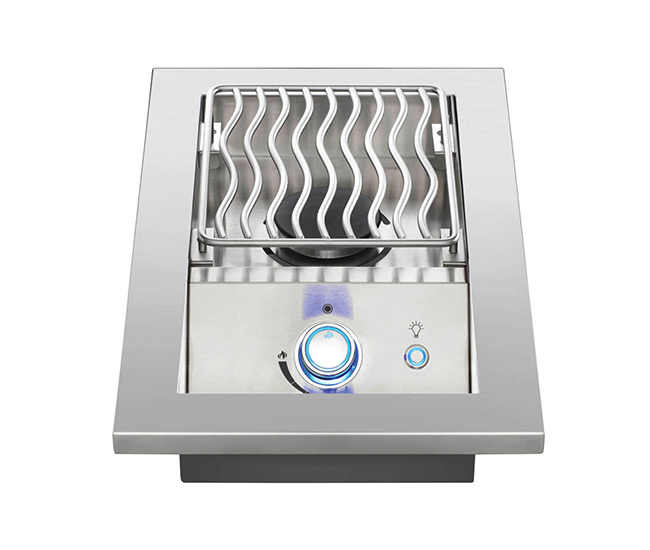

Starting the burner is fast and straightforward with the JETFIRE ignition system. This battery-free ignition system provides dependable startup without the need to replace ignition batteries. The large ergonomic backlit SafetyGlow control knob is easy to operate and provides added visibility when cooking after dark. The knob glows blue when illuminated and changes to red when the burner is operating, providing a clear visual reminder that the heat is on.

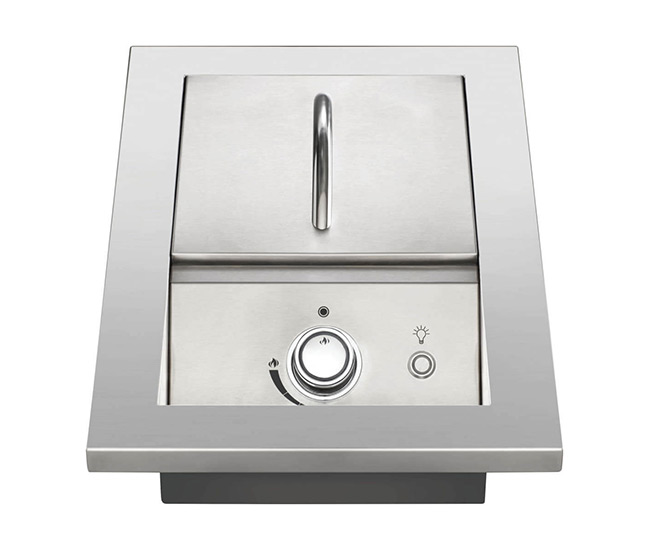

The burner is built with premium stainless steel construction for durability and a clean appearance that fits naturally into a custom outdoor kitchen. Seamless perimeter trim helps create a finished countertop installation, while the included stainless steel protective cover keeps the cooking area covered and creates a streamlined appearance when the burner is cool and not being used. Never close the cover while the burner is operating or still hot.

The complete burner measures approximately 13.50 inches wide x 22 inches deep x 6.90 inches high. For installation, the BIB10 opening is specified at 10 to 12 inches wide x 18.75 to 20.75 inches deep x 6 inches high. Because the exact countertop opening and surrounding construction are important for a safe installation, dimensions should always be confirmed against the current installation documentation before the countertop or cabinet is fabricated.

Installation Clearances: The owner's manual specifies a minimum distance of 17 inches from combustible materials at the rear and 9 inches at the sides. A minimum distance of 17 inches between additional built-in appliances is also specified. Proper ventilation, cabinet construction and gas-line routing must be maintained throughout the outdoor kitchen installation.

Important Power Requirement: When this Built-In 700 Series burner is installed without being connected to a Built-In 700 Series grill, Power Supply Kit N370-1091-SER is required to power the illuminated control knob. If the burner is connected to a Built-In 700 Series grill and is installed more than 3 feet away, N750-0087 3-foot extension wiring is required.

Technical Information Disclaimer: Product specifications, dimensions, cutout requirements, gas requirements, clearances and installation information should be verified before purchase and installation. Always refer to the current owner's manual and assembly or installation guide for the exact model being installed. Gas connections and installation should be completed by a qualified professional in accordance with applicable local codes.
