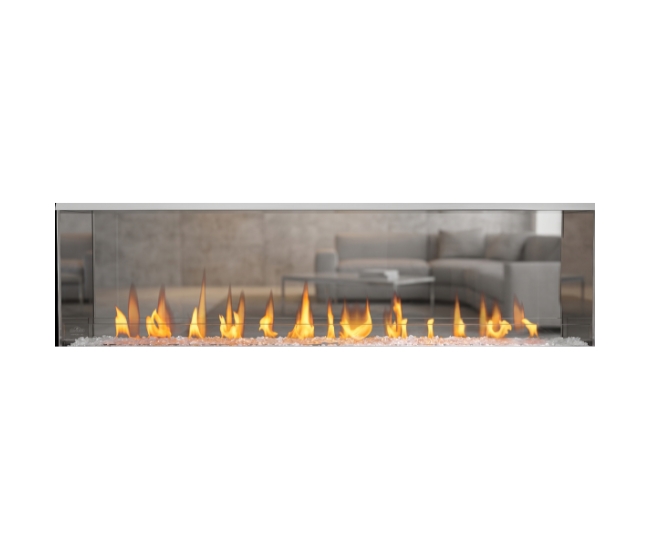

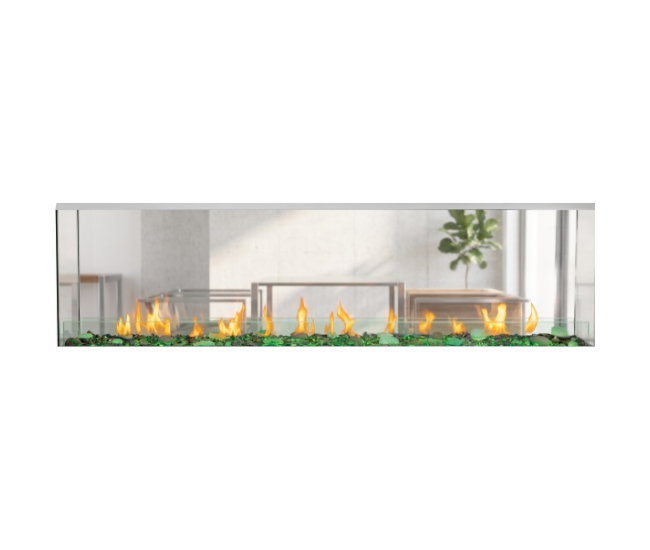

Napoleon Galaxy See-Thru 74-inch Electronic Ignition Outdoor Natural Gas Fireplace

The Napoleon Galaxy See-Thru 74-inch Electronic Ignition Outdoor Natural Gas Fireplace, creates an expansive two-sided flame presentation for outdoor divider walls, patios, pool areas, outdoor kitchens, and other properly ventilated outdoor living spaces. This see-through configuration requires both the GSS74NE natural gas base fireplace and the GSS74STC stainless-steel see-through conversion kit. The base fireplace is single-sided on its own, so the GSS74STC kit must be selected at the time of purchase and included with the order.

A maximum input of 70,000 BTUs produces a broad linear flame display across the fireplace opening. The automatic electronic ignition system lights the pilot and main burner without requiring the pilot to be lit manually, making operation convenient from the included wall-mounted control.

The expansive 20-inch-high viewing area provides a clear view of the flames from both sides of the completed installation. The finishing-flange opening measures approximately 74 1/16 inches wide, creating a dramatic focal point that can visually connect two outdoor seating or entertaining areas.

The firebox is constructed from durable 304 stainless steel for outdoor use. Included clear glass embers create a bright, contemporary media bed, while the included glass wind guard helps protect the flame from wind and improves its overall appearance. A finishing flange defines the perimeter of the fireplace opening for a clean, modern full-view installation.

Integrated multi-color LED ember-bed and wind-guard lighting adds visual interest whether the burner is operating or turned off. Seven selectable colors include red, yellow, green, light blue, dark blue, purple, and white, allowing the fireplace appearance to coordinate with different outdoor settings and occasions.

An included wall-mounted control switch provides separate controls for the fireplace and lighting. This allows the LED lights to be used independently from the burner when flame operation is not needed. The control is supplied with a 20-foot wire for installation flexibility.

The GSS74NE must be hardwired to a 120V electrical supply and properly grounded in accordance with applicable electrical codes. Electrical work should be completed by a qualified electrician. The wiring diagram identifies a 3V adapter for the ignition controls and a 12VDC, 4-amp transformer for the LED lighting. Do not connect 120V directly to the gas valve or wall switch because incorrect wiring can damage the controls.

This appliance is certified for outdoor use only and must never be installed inside the warm-air envelope of a structure. A sheltered location is recommended because direct wind can disrupt the flame or cause pilot and main-burner outages.

Disclaimer: Product dimensions, BTU ratings, gas pressures, electrical requirements, framing dimensions, clearances, included components, optional accessories, installation requirements, and warranty terms may change without notice. Always verify that both required models are included with the order and refer to the current Napoleon owner’s manual, installation manual, GSS74STC conversion-kit instructions, appliance rating plate, and applicable building, gas, and electrical codes before purchase, installation, fuel conversion, service, or operation.
