Napoleon Trivista Primis 60-inch Built-In Electric Fireplace

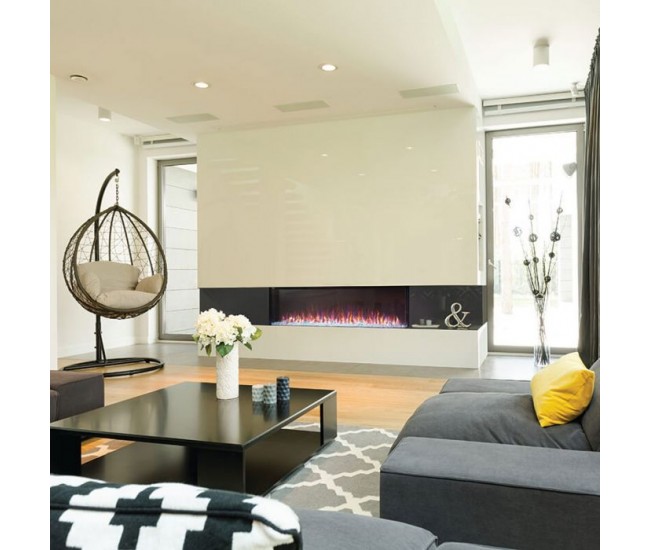

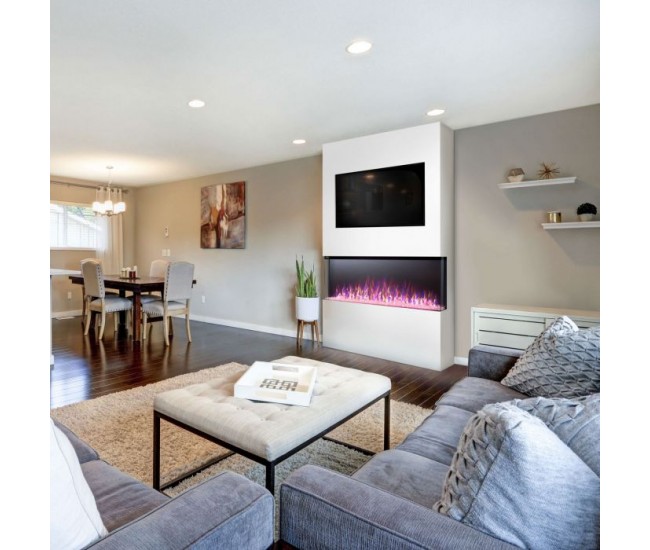

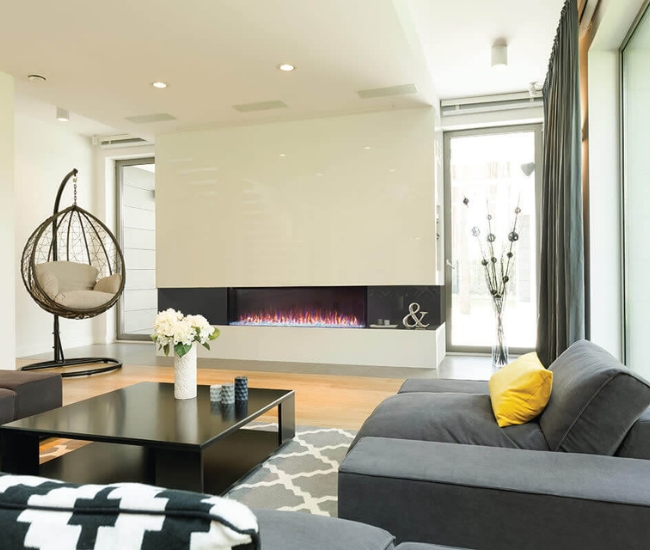

Create a dramatic built-in focal point with the Napoleon Trivista Primis 60-Inch Electric Fireplace. Its flexible multi-view design can be installed as a three-sided fireplace, a two-sided corner fireplace, or a single-sided fireplace using the included end panels.

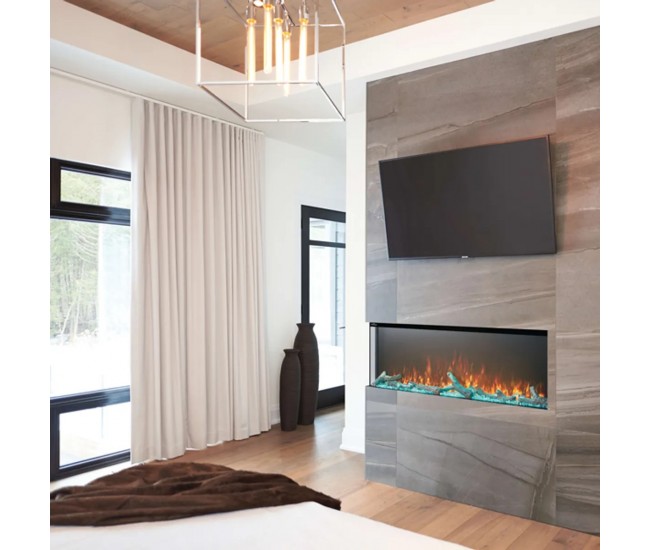

The Trivista Primis includes a detailed Northern Woods log set along with large and small clear crystal media. Display the logs or crystals separately, or combine them to create a customized firebox with natural texture, reflective sparkle, and added visual depth.

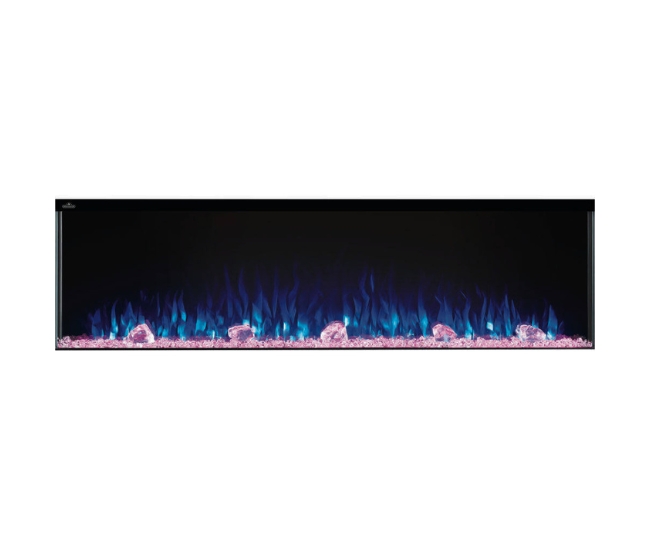

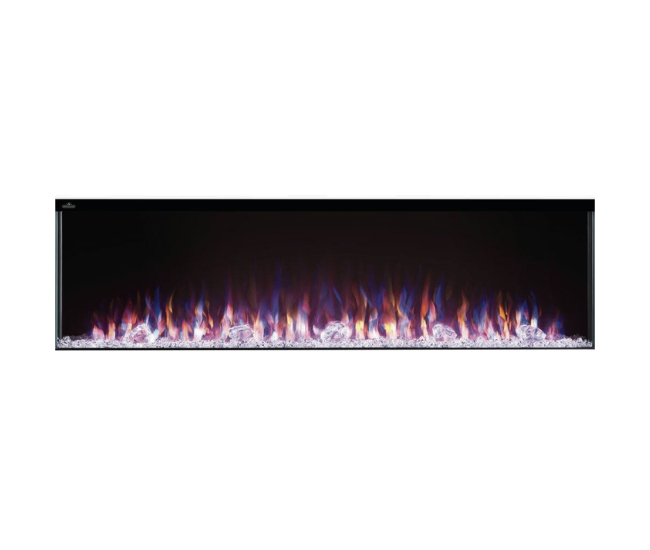

Seven flame color settings use orange, yellow, blue, and combined effects to create a wide range of looks. Adjustable flame brightness and five flame-speed settings make it easy to change the display from a soft, relaxing glow to a more active fire presentation.

The multicolor ember bed offers 13 individual color choices, along with color-cycle, color-lock, brightness, and breathing-effect settings. Coordinating LED top lights use the same color options, adding another layer of ambient illumination above the flames for a more dramatic nighttime display.

On a 120-volt connection, the integrated heater delivers up to 5,000 BTUs and 1,500 watts. When professionally hardwired for 240-volt operation, output increases to as much as 10,000 BTUs and 3,000 watts. Blower-only, low-heat, and high-heat modes are available, while the adjustable thermostat provides temperature settings from 64°F to 82°F. The flames, ember bed, and top lighting can also operate without heat for year-round enjoyment.

Fireplace functions can be managed with the included multifunction remote control or the touchscreen control panel. A motion proximity sensor illuminates the control display when movement is detected below the panel, allowing the controls to remain visually discreet when they are not being used. Additional features include heater lockout and an automatic timer adjustable from 30 minutes to eight hours.

The Napoleon Trivista Primis is designed for fully recessed built-in installation and requires no venting, making it well suited for custom feature walls and multi-sided fireplace projects. This 60-inch model measures 60 inches wide by 21 1/2 inches high by 9 1/2 inches deep, with minimum framing dimensions of 59 inches wide by 21 3/4 inches high by 9 1/4 inches deep. While both Primis and Trivista Pictura provide multi-sided viewing, Primis offers greater installation flexibility with one-sided, two-sided, or three-sided configurations, compared with Pictura's wall-mounted three-sided design. Primis also adds top lighting, a Northern Woods log set, and crystal media, and can provide up to 10,000 BTUs of supplemental heat when properly configured for 240-volt operation.

The appliance operates on 120-volt or 240-volt power and requires a dedicated 15-amp grounded circuit. Napoleon’s current installation manual requires the fireplace to be hardwired by a qualified electrician in accordance with applicable electrical codes. Extension cords and relocatable power taps must not be used.

The Napoleon Trivista Primis NEFB60H-3SV is intended for indoor use only and is backed by Napoleon’s 2-year limited warranty. Always consult the installation and operation manual for complete framing, wiring, finishing, clearance, and safety requirements before installation.
