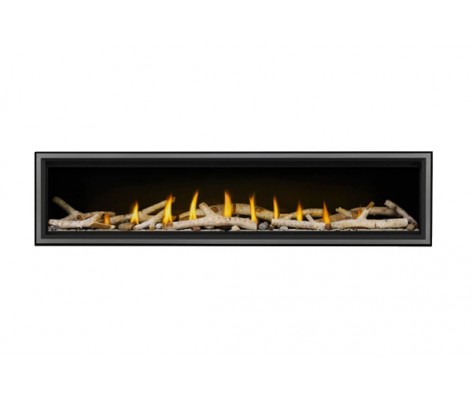

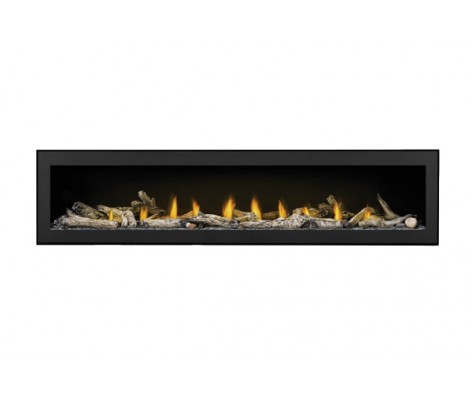

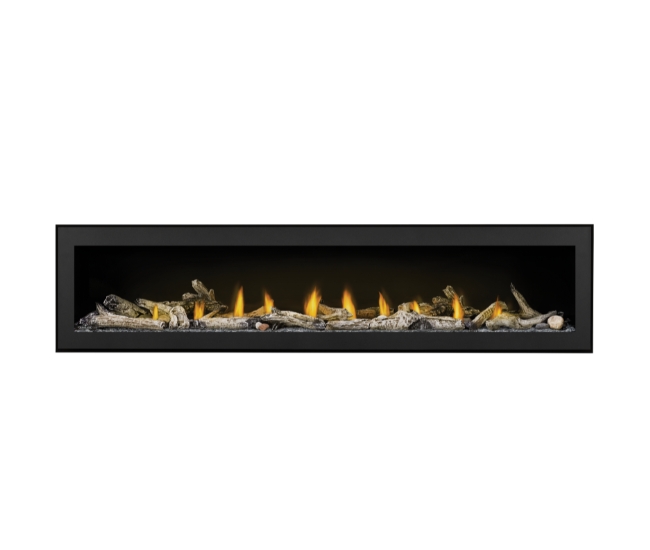

Napoleon Vector 74-inch Direct Vent Natural Gas Fireplace

The Napoleon Vector 74-inch Direct Vent Natural Gas Fireplace delivers an expansive linear flame presentation designed for contemporary built-in installations. As the largest single-sided model in the Vector Series, it combines a wide viewing area with customizable media, advanced lighting, and convenient electronic controls. The natural gas burner operates from 30,000 to 48,000 BTUs, providing adjustable flame and heat output across the long firebox.

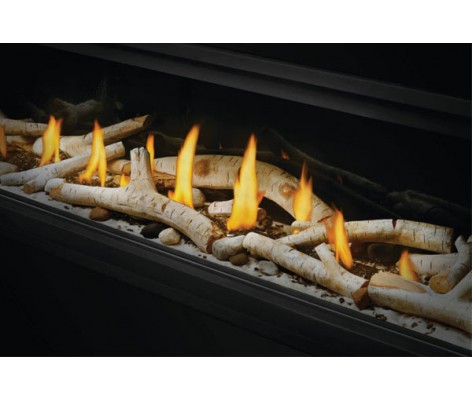

A tube-style burner with flame and heat adjustment creates a clean ribbon of flames across the fireplace, while included MIRRO-FLAME™ porcelain reflective radiant panels reflect the flames back into the firebox to add depth and visual intensity. Heat-radiating ceramic glass provides a clear view of the fire, and an included black premium safety barrier helps protect against accidental contact with the hot viewing surface.

The Vector's fire presentation is enhanced by multi-color LED ember bed lighting and integrated top accent lighting. Ember bed colors can be changed to complement the selected media, interior décor, or desired atmosphere. The top lighting adds illumination from above, highlighting the media and helping create a dramatic appearance even when the fireplace is not operating at full flame.

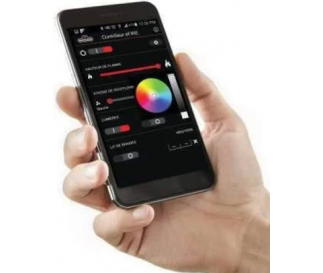

Fireplace operation is managed through the included ProFlame II control system, eFIRE Bluetooth® controller, and remote control. The electronic ignition system includes intermittent pilot ignition and continuous pilot modes, with an integrated timer designed to reduce unnecessary pilot operation when the fireplace has not been used for an extended period.

Additional included features include a stainless steel flex connector, easy-access air control, firestop, and vent shield, providing the core components needed for a properly planned installation.

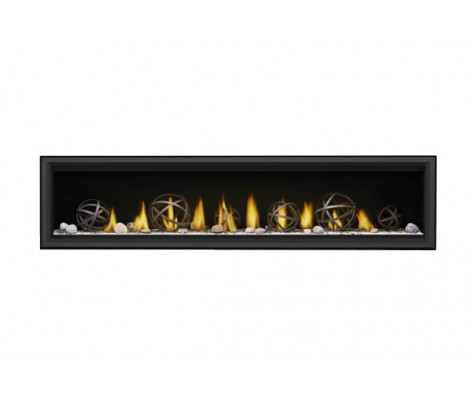

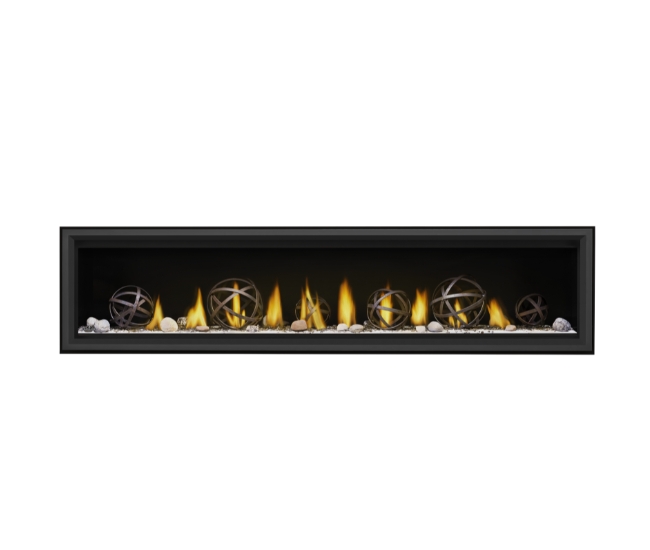

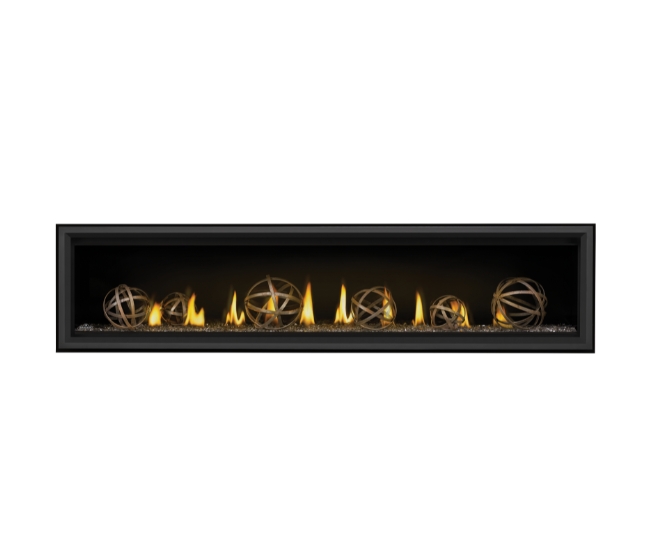

The appearance of the 74-inch Vector can be extensively customized, and a compatible media configuration must be selected.

The fireplace uses a top 5-inch exhaust / 8-inch air intake direct vent system and supports approved horizontal or vertical venting configurations. Published appliance dimensions are approximately 89 5/16 inches wide × 39 3/4 inches high × 20 inches deep. The finishing flange measures approximately 76 3/4 inches wide. For a standard single-sided installation, the installation manual specifies a minimum rough framing width of approximately 89 13/16 inches, a framing depth of approximately 20 1/8 inches, and a minimum enclosure height of 91 inches, although venting configuration and optional heat-management systems can change installation requirements.

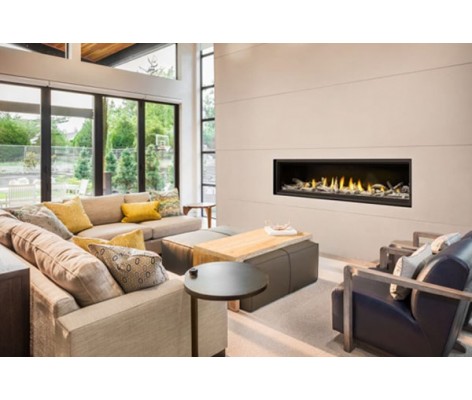

The Vector 74 is designed for indoor built-in installation and is backed by Napoleon's President's Limited Lifetime Warranty.

Important: A compatible decorative media configuration is required to complete the fireplace. Additional venting, heat-management, conversion, finishing, or installation components may be required depending on the application. Technical information, dimensions, framing requirements, clearances, venting requirements, accessory compatibility, and specifications are subject to change. Always refer to the current Napoleon owner's manual and installation manual for complete requirements before installation, operation, or service.

 **LV62 & LV74 Requires 4 week lead time**
