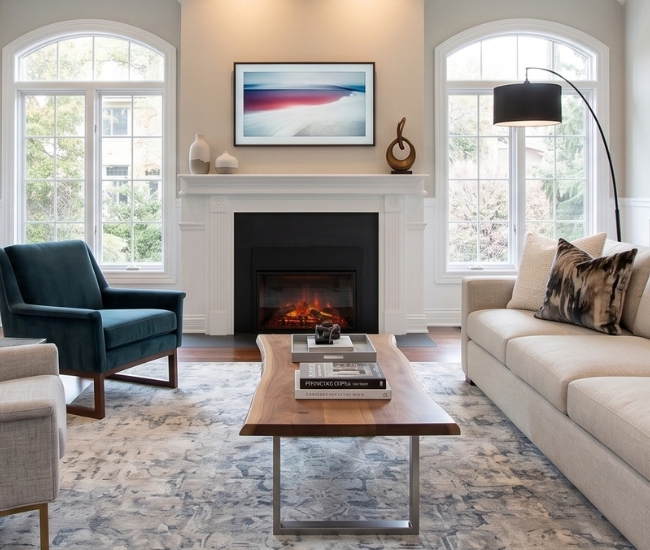

SimpliFire 30-inch Built-In Electric Fireplace

Bring the traditional appearance of a masonry fireplace together with the convenience of electric heat with the SimpliFire 30-inch Built-In Electric Fireplace. Designed for a clean, integrated installation, the SF-BI30-EB features a flush built-in design that allows finishing materials to come directly to the edge of the fireplace for a finished look without visible heat vents or a mesh screen. A masonry-style interior, realistic log and grate assembly, glowing ember bed, and adjustable flame effects create the inviting appearance of a traditional fire without the need for gas, venting, or wood.

The SF-BI30-EB offers four flame effects along with a lighted ember bed so the fireplace can provide ambiance throughout the year, with or without heat. A convenient multifunction remote control provides access to power, flame settings, heat, thermostat adjustment, and timer functions. The thermostat can be adjusted from 61°F to 82°F, while the timer can be set from 30 minutes up to 9 hours.

For flexible heating performance, this built-in electric fireplace can operate on 120V or 240V power. At 120V, the fireplace operates at 1,400 watts and provides approximately 5,000 BTUs. A 240V hardwired installation increases output to 2,800 watts and approximately 10,000 BTUs. Both configurations require a 15-amp circuit. The fireplace can be hardwired for either voltage, while 120V installations may also use the supplied plug-in power cord assembly.

The zero-clearance design provides installation flexibility for new construction or installation into a suitable existing fireplace. The unit measures approximately 31 inches wide x 26-3/4 inches high x 11 inches deep with a 28-1/4-inch x 22-3/4-inch viewing area. Framing requirements are approximately 31-3/4 inches wide x 11-5/8 inches deep, with a framing height of 27-1/4 inches for 120V installations or 29-1/4 inches for 240V installations. When hardwired for 240V, a 2-inch clearance is required above the unit.

Disclaimer: Product specifications, dimensions, electrical requirements, clearances, heat output, installation requirements, and other technical information are subject to change and may vary by application. Always refer to the current SimpliFire owner's and installation manual for complete specifications, safety requirements, electrical connections, framing dimensions, clearances, and installation instructions before purchasing or installing this fireplace.
